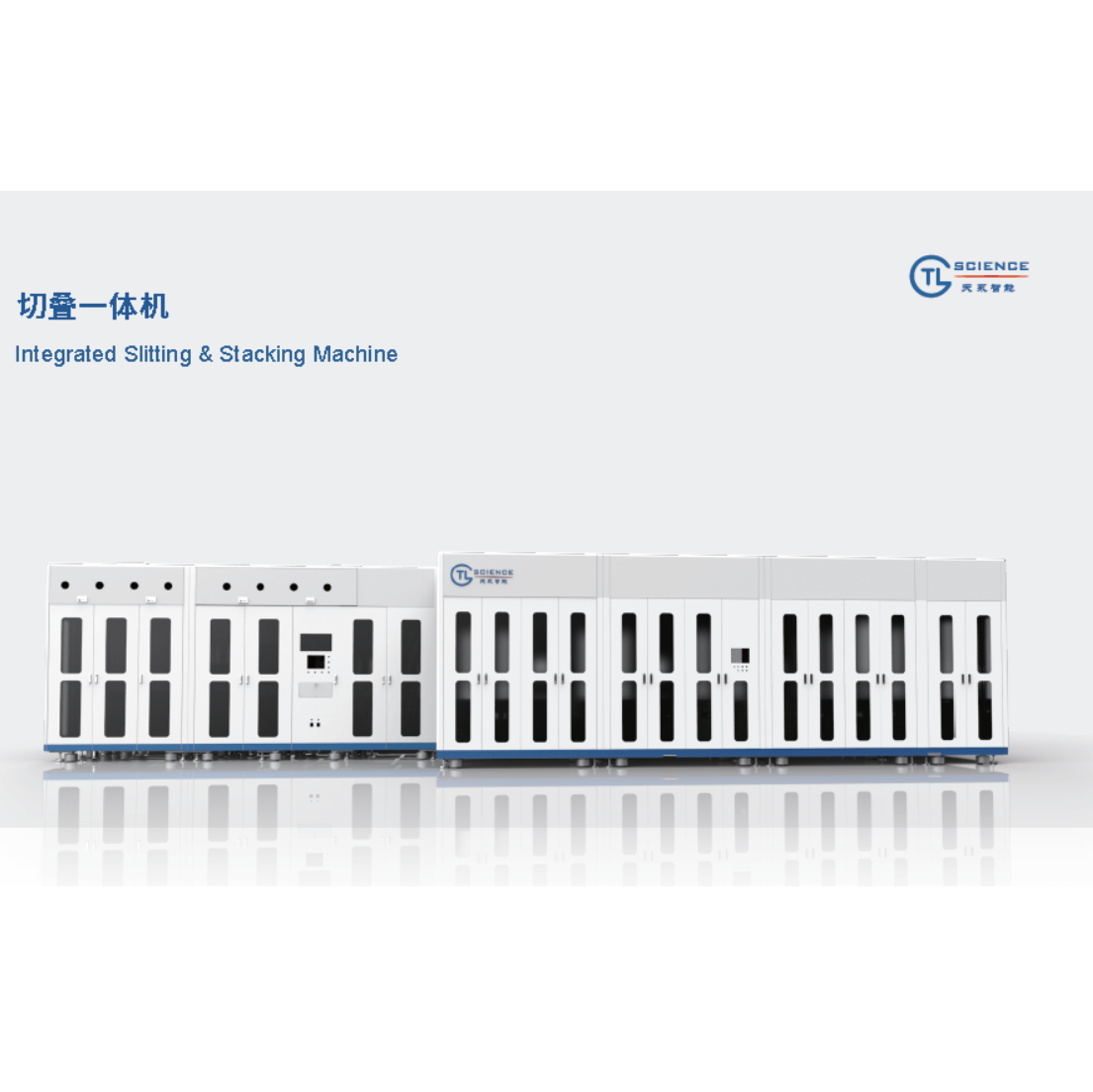

This equipment is mainly used for automatic cutting and automatic lamination of elec-trodes of lithium-ion batteries. Inclu ding the following functions: automatic unwin ding ofthe electrode (the receiving tab of the coil has been laser cut and formed), correction,tension detection, tension buffering, traction, hardware cutting V angle, electrode cuttingdouble-sided demagnetization & dust removal, size inspection, defect detection, CCDpre-positioning, stacking, core tail roll, glue, QR code tape, Hi-pot test & Hot pressing.celI NG discharge,loading and unloading, etc.
- Equipment size: 13m*4.2m*3m (die-cut part width 3.2m)
- Between three lamination stations, there are maintenance channels for easy manual maintenance and operation.
- A maintenance channel behind anode and cathode die cutting, convenient for manual maintenance and operation.
- Separator and tape feeding position, both close to equipment, outside, convenient for manual feeding.
- Tab cutting efficiency ≥ 200ppm, efficiency of laminated single piece ≤ 0.5s/pcs, auxiliary time ≤7s
