Main Parameters
Chassis BENZ, MAN. SCANIA, SINOTRUK MAN、optional
(MPa) Pump max, working pressure ≥1.6
(L/S) Floating submersible pump max.capacity 250
(MPa) Floating submersible pump max, working pressure≥0.5
Floating submersible pump driving type Hydraulic drive
(kg)Crane arm lifting weight ≥500
(s) Crane hook loading time 60-70
(kg)Crane hook loading ≥14000

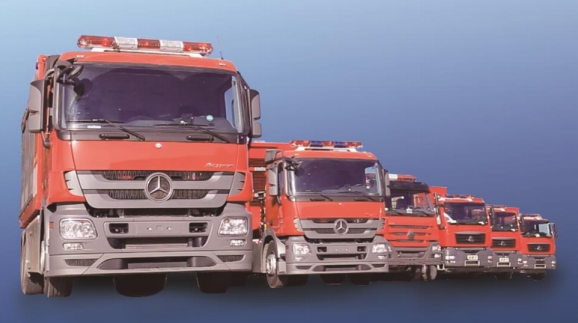

Remote water supply system Hose laying fire truck
Main parameters
Chassis BENZ、MAN,SCANIA、SINOTRUK MAN、optional
The speed of collecting hose of the hose recovery device (km/h) ≤5
Hose diameter DN150-DN300
Hose material Double-sided polyester ammonia coatings
(m)Hose length ≤3000
Hose coupling High strength, high elongation aluminum alloy
DN200 Series
Model DN200-6000m (Chinese/import) DN200-3000m(Chinese/Import)
Pump fire truck 2 1
Hose laying fire truck 2 1
Fire Equipments truck optional optional
(L/S)water supply flow 110 (integrating) 110 220 (parallel)
(MPa)End pressure 0.2 (integrating) 0.4 0.4(parallel)
(m)Water supply distance 6000 (integrating) 3000 3000(parallel)
(m) vertical water distance ≥30 ≥30
(C)Working temperature -25~+50 -25-+50
DN300 Series
Main Specifications
Model DN300-6000m(import) DN300-6000m(Chinese/Import) DN300-3000m(Chinese/Import)
Pump fire truck 1(the vehicle type、double pump) 2(Arm type) 1(Arm type)
Hose laying fire truck 2 2 1
Fire Equipment truck optional optional optional
(L/S) Water supply flow 250 (integrating) 250(integrating) 250
500(parallel) 500(parallel)
(MPa) The terminal pressure 0.3 (integrating) 0.3 (integrating) 0.6
0.6 (parallel) 0.6 (parallel)
(m) The water supply distance 6000 (integrating) 6000 (integrating) 3000
3000(parallel) 3000 (parallel)
(m) The vertical water distance ≥30 ≥30 ≥30
(C) Working temperature - 25~+50 -25-+50 -25-+50
