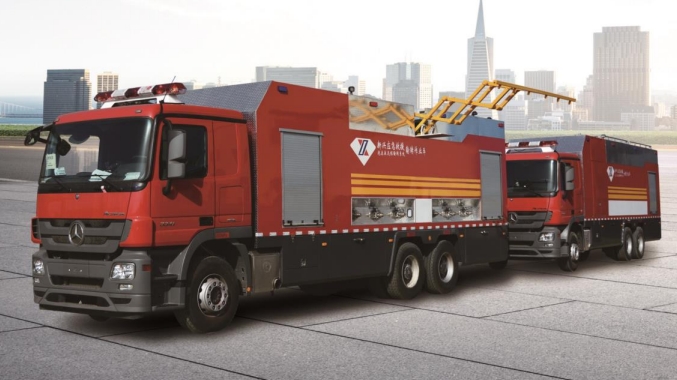

Remote foam liquid delivery system
Original creation
Global invention patents
Two big innovations
Long-distance,mass flow.continuous foam liquid supply technology
Innovative design of wireless remote control of suction device and defoaming technology
Three“automatic" Automatic drain Automatic transfer Automatic filling
According to current situation of domestic and fire demand, the research of fire foam liquid delivery system is to improve the fire safety emergency rescue capabilities, to consummates the warservice security system in fire controlfield. The system can provide fire fighting foam liquid to the fire fighting equipment in rapid speed, long distance,continuous and big flow. The system is mainly used in the fire industry, which is suitable for large oil storage,petrochemical industry, port& warehouse, petrochemical tank area, airportand otherimportantsites
Model Single unit Double unit Double unit
Foam liquid deivery truck 1 1 1
Foam concentrate distribufion veride 1 1
Fire Equipment truck 1
(L/S)The suction flow rate >30 >20 >30
(L/S)The delivery rate >30 ≥20 ≥30
(m)The delivery distance ≥500 ≥500 >500
(MPa)The terminal pressure ≥0.1 ≥0.1 ≥0.1
Transmissionmedium P、FP、AFFF、FFTP P、FP、AFFFFETP P、FP、AFFF、FFTP
(C)Working temperature -10-+46 -10-+46 -10-+46
Conveyinghose DN150 DN100 DN150
Hose texture Polyurethane Polyurethane Polyurethane
(L/S)The max fiow capacity >500 >350 >500
(m’) The tank capacity >50000 >35000 >50000
